This capacitor is used for getting AC motors and compressors up and running smoothly. Its heat resistance and anti-explosion features make it a reliable choice for various uses.

Package Includes: 1 x Round A/C Capacitor(30 uF/MFD 370/450VAC)

Model: CBB65（Universal model)
Case Material: unpainted aluminum case
Dielectric Material: metallized polypropylene film
Available Capacitance: 30uf
Capacitance Tolerance: ±5%
Operating temperature: -40℃ to +85℃/-40℉ to +185℉
Rated voltage: 370V/440V AC
Frequency: 50/60 Hz
Safety rated: 10,000 AFC
Operating Life: 60,000 hours with 95% survival

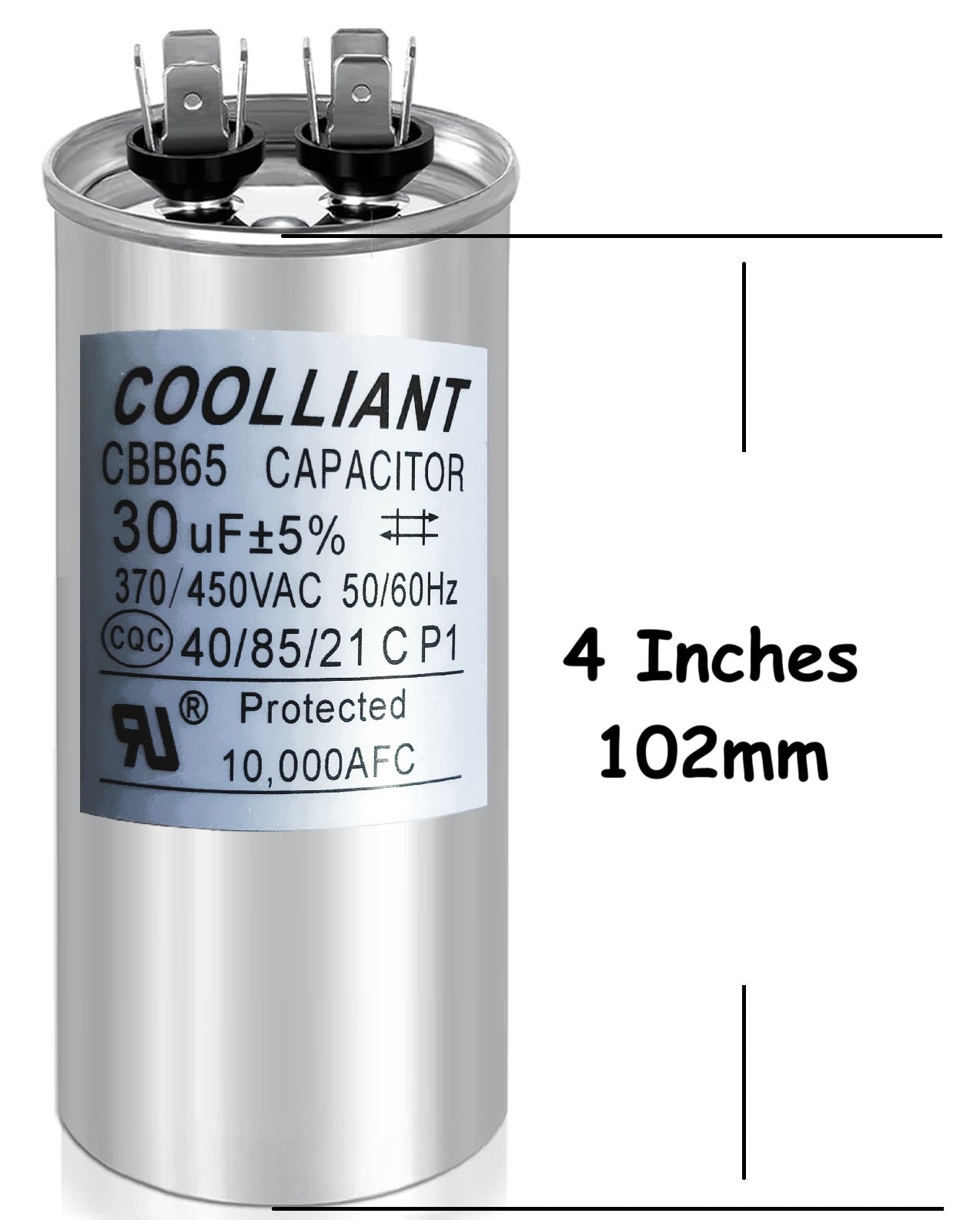

Capacitor size measures: ( 2.1inches / 55mm ) in Diameter x ( 4inches / 102mm ) in Height.

30uF ±5% 370/450 VAC round run/start capacitor (CBB65) can replace all capacitors rated at 250, 300, 370, 440, and 450 Volts.
This 30 MFD capacitor replaces models such as Genteq C330, C330R, 97F9608BX, 97F9608, CPT-0241, CPT0241, CPT00241, JARD 325P306H37M25A4ZM9, MARS 12217, and other brands with the same uF/Mfd rating.

Capacitors play an important role in electrical systems by temporarily storing electrical charges. A dual "run capacitor" is particularly useful as it powers two electric motors—typically found in large air conditioning or heat pump systems.

This capacitor is designed for the starting and running of AC motors operating at a frequency of 50Hz/60Hz, including Industrial Grade Replacements for Central Air-Conditioners, Heat Pumps, and Compressors.

Capacitors are available in various sizes, depending on the capacitance (measured in µF or MFD) and voltage.

Information on Selection:
Choose a capacitor with the same specifications to replace any brand.
Select the correct capacitance: do not use a different value than the one specified by the manufacturer. The microfarad ratings should be the same.
Check the voltage of the capacitor you are replacing: Increasing the voltage rating will not have a negative impact on the motor's performance. If you are replacing a 370V capacitor, you can use either a 370V or 450V capacitor.
Shape of Capacitor: The shape of the capacitor only affects how well it fits on the equipment. The actual performance and capacities do not vary based on the shape of the capacitor.
A round capacitor can be used to replace an oval-shaped one with the same MFD and voltage specifications.

Save time and money: Save you a lot of money and only take a few minutes to install, helping your air conditioner function properly again.

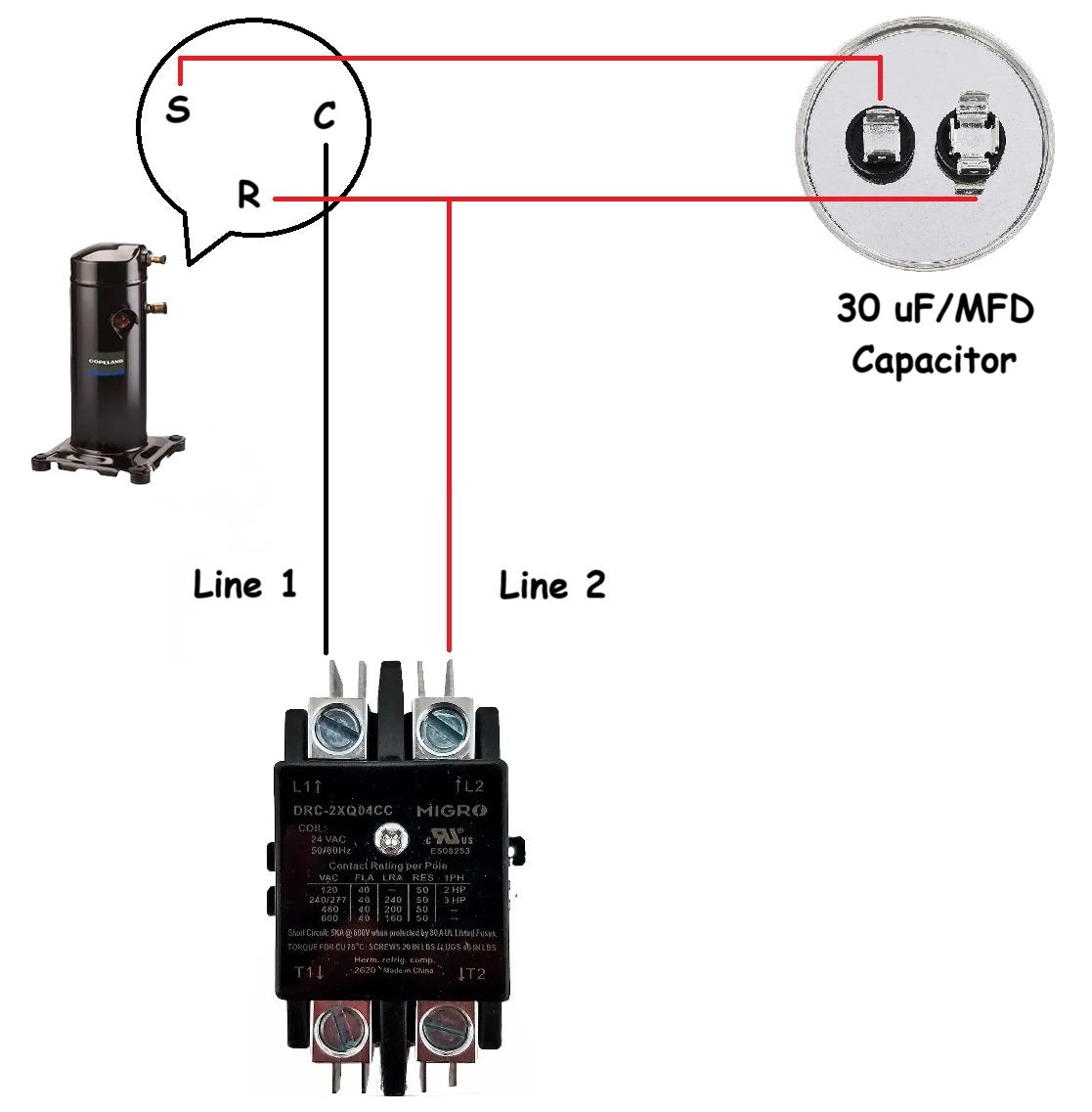

To replace the capacitor, follow these steps:
1) Turn off the power and find the capacitor.
2) Discharge any stored electricity by shorting the terminals.
3) Take a photo or make a note of how the wires are connected.
4) Disconnect the wires and install the new capacitor.
5) Reassemble everything and test it out.

Capacitors are universal and can fit all air conditioner brands. Simply match the uF/MFD and ensure that the volts are the same or higher than the required voltage.

Wide compatibility - Direct replacement for Carrier Global, Lennox, Trane, Goodman, American Standard, Rheem, Amana, YORK, Daikin, Mitsubishi, Ruud, Bryant, Heil, Rheem air conditioners, LG, and all HVAC brands.
